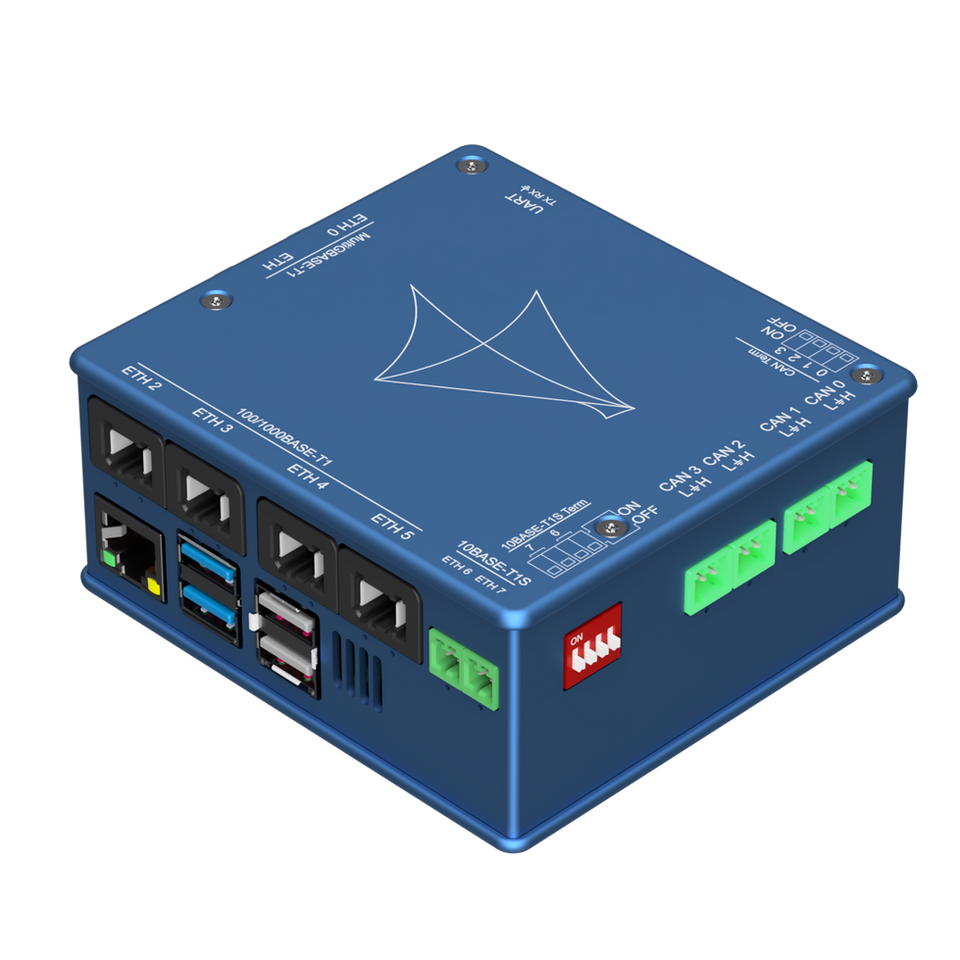

NET.EX
€1,599.00
All our prices are excluding VAT.
NET.EX bridges the gap between industrial performance and consumer-driven simplicity. With the extension FPGA module for Raspberry Pi 5, it enables professional-grade automotive networking.
Designed for automotive and industrial standard ECU interfaces, NET.EX combines all important interfaces in one compact platform.
NET.EX comes as a pre-configured and fully assembled kit. The kit consists of:
- embicas NET.EX base PCB
- embicas NET.EX interface modules:
- 4x CAN
- 2x 10BaseT1S
- 4x 100/1000BaseT1
- 2x 2.5G Ethernet
- 1x UART
- SD card (32GB)
- Receptacles for CAN and 10BaseT1S
NET.EX GPIO interface module will be released soon.
If your variant is missing, please contact us and we can discuss our roadmap or project adaptions.
Quantity
Key features
- All-in one solution for standard ECU interfaces
- Access all automotive Ethernet interfaces like standard Linux Ethernet ports
- Check our codebase at https://github.com/embicasGmbH
Applications
- All-in one tool for ECU interfaces
- Media converter
- Hardware-in-the loop
- ECU emulator
- Bridging different Ethernet/CAN standards
- Switch
- Production testing
- Universal tool for a developers desk
Technical specification
General
| Dimensions |
Width: 101.7mm Height with rubber feets: 47.9mm |
| Weight | 0.5kg |
| Power | 5V power supply +/-5% Raspberry Pi + NET.EX max 27.5W |
| Housing | Anodizes Aluminium + Steel components inside |
| Cooling | Active FAN + passive via metal housing |
| FPGA | AMD (Xilinx) 7Series (XC7A100T) |
| FPGA Flash | Micron QSPI 16MB |
| Raspberry Pi | Raspberry Pi 5, all RAM variants |
Connectivity
| 4x CAN |
4x CAN FD Configurable termination Connector: pluggable System Terminal Block. 3 Pin, 2.5mm pitch. Receptacle: pluggable System Terminal Block with Spring connection, 3 Pin, 2.5mm Pitch (DORABO XY2500F-T-2.5-3P or similar) Speed: Up to 2Mbps |
| 2x 10BaseT1S |
2x 10 Base T1s PHY: Microchip LAN8671 Connector: pluggable System Terminal Block, 2 Pin, 2.5mm Pitch. Receptacle: pluggable System Terminal Block with Spring connection, 3 Pin, 2.5mm Pitch (DORABO DB2EKD-2.5-2P-GN or similar) Speed 10MBps, half duplex |
| 4x 100/1000BasedT1 |
4x 100/1000BaseT1 Master or slave PHY: Marvell 88Q2112 Connector: UTP (MATEnet) Speed: 100Mbps/ 1000Mbps, full duplex |
| 2x 2.5G Ethernet |
2x 2.5G Ethernet Master or slave PHY: Infineon MV-Q3244 Connector: STP (H-MTD) Speed: 2.5Gbps, full duplex |
| 1x UART |
UART from Raspberry Pi 3.3V level |
| Raspberry Pi connectivity | 40 Pin connector PCIe connector, one lane Gen1/Gen2 |
GPIO Extension (if selected, will be released soon)
| GPI |
5x General Purpose Input Input voltage range: 3.3V - 32V Input resistance:
Capability:
Connector: 6 pin pluggable System Terminal Block (1 Pin GND + 5 Pin GPI), 2.5mm pitch Suitable receptable: DB2EK-3.5-6P-GN-S or similar |
| GPO |
5x General Purpose Out Output voltage: 5V (internal) 5V- 32V (via external supply)
Output current:
Capability:
Connector: 6 pin pluggable System Terminal Block (1 Pin GND + 5 Pin GPI), 2.5mm Pitch Suitable receptable: DB2EK-3.5-6P-GN-S or similar |
| External GPO power |
5V-32V. Used only for GPO Selectable via mechanical switch |
Software versions and drivers
-
Drivers
-
Linux ethernet device drivers for network interfaces
-
SocketCAN driver for CAN interfaces
-
-
Recommended OS
-
Raspberry Pi OS 64-bit with Kernel version 6.12
-
Shipping and delivery
We ship only within the EU and with DHL. The shipping costs vary depending on the product weight and will be calculated in the scope of the ordering process. All embicas orders are shipped from our warehouse in Vienna (Austria), within the EU.
