VID.EX
VID.EX bridges the gap between industrial performance and consumer-driven simplicity. With the extension FPGA module for Raspberry Pi 5, it delivers professional-grade video interface capability in a compact, accessible platform.
Designed for automotive and industrial camera and display applications, VID.EX supports modular video standards through interchangeable interface modules. This flexible architecture enables fast adaptation to evolving project requirements while maintaining long-term scalability.
Boost your development by using our code as a starting point. Build on ready-to-use open-source projects and libraries, or seamlessly integrate your own software to reduce integration effort and significantly shorten development time.
VID.EX brings complex video connectivity directly to your desk — compact, cost-efficient, and future-ready.
Bringing automotive video interface to the Pi.
View or stream any media.
Key features
-
Modular interface concept, supporting all common video links (see Interface Modules)
-
Access to interfaces via Video for Linux 2
-
Boost your development with available open source projects and Linux community support
-
Check our codebase at https://github.com/embicasGmbH
Applications
-
Frame grabber an generator
-
Camera emulation
-
ECU and display testing
-
Flexible DisplayPort generator and analyzer
-
Production testing
-
Universal tool for a developers desk
Applications
-
Frame grabber and generator
-
Camera emulation
-
ECU and display testing
-
Flexible DisplayPort generator and analyzer
-
Production testing
-
Universal tool for a developers desk
Specification
Technical specifications:
- SpecificationDescriptionDimensionsWidth: 101.7mm; depth: 92.6mm; height without rubber feets: 46mm; height with rubber feets: 47.9mmWeight0.5kgPower5V power supply +/-5%; Raspberry Pi + VID.EX max 27.5WHousingAnodizes aluminium + steel components insideCoolingActive FAN + passive via metal housingFPGAAMD (Xilinx) Ultrascale+ (AU10P)FPGA FlashMicron QSPI 16MBRaspberry PiRaspberry Pi 5, all RAM variants
- SpecificationDescription4x Module connectorFor details see interface module connector specificationDisplayPortDisplayPort 1.4 Sink; two lanes; mini DisplayPort connector; 3.3 power supply output (500mA)I2C & UART4x I2C access to main I2C of interface modules with internal pull-up resistors; UART connection to Raspberry Pi; 3.3V Pin levelCANCAN FD, no terminationRaspberry Pi connectivity40 Pin connector; PCIe connector, one lane Gen1/Gen2/Gen3
-
MIPI CSI-2 / DPHY: 4 data lanes + 1 clock lane. 400 - 2400Mbps
-
2 lanes DisplayPort 1.4 TX
-
2 lanes DisplayPort 1.4 RX
-
8 GPIOs, 2 used for I2C control
-
1 dedicated SerDes enable
-
Dedicated Power Over Coax pin (connected to external connector)
-
Different design variants for different use-cases:
-
4x CSI-2 TX to connect with serializers
-
4x CSI-2 RX to connect with deserializer
-
2x CSI-2 TX & 2x CSI-2 RX to connect with 2x serializers and 2 deserializer at the same time
-
DisplayPort (coming soon)
-
- SpecificationDescriptionPhysical layerD-PHYLine rate400-2400MbpsLane count1, 2 or 4 lanesLane flexibilityLane swapDatatypesEmbedded data, RAW8, RAW10, RAW12FramesyncInternal framesync generator; GPIO usage to receive/send framesync
DisplayPort 1.4; PBR (1.62 Gbit/s per lane)
DisplayPort 1.4;HBR (2.7 Gbit/s per lane)
DisplayPort 1.4;HBR2 (5.4 Gbit/s per lane)
DisplayPort 1.4;HBR3 (8.1 Gbit/s per lane, coming soon)
-
Drivers
-
Video4Linux drivers for Video Input/Output
-
I2C master and slave functionality
-
SocketCAN driver for CAN interface
-
-
Recommended Raspberry Pi OS: OS 64-bit with Kernel version 6.12
-
Interface Modules
Available
GMSL1/2 Serializer
CSI2 Interface
Suitable for camera applications
Connector: Coax (FAKRA)
Available
GMSL1/2 Deserializer
CSI2 Interface
Suitable for camera applications
Connector: Coax (FAKRA)
Planned
GMSL2/3 Serializer
CSI2 Interface
Suitable for camera applications
Connector: Coax (FAKRA)
Planned
GMSL2/3 Deserializer
CSI2 Interface
Suitable for camera applications
Connector: Coax (FAKRA)
Planned
GMSL2/3 Serializer
Displayport 1.4 Interface
Suitable for display application
Connector: Coax (FAKRA), STP (H-MTD) on request
Planned
GMSL2/3 Deserializer
Displayport 1.4 Interface
Suitable for display application
Connector: Coax (FAKRA), STP (H-MTD) on request

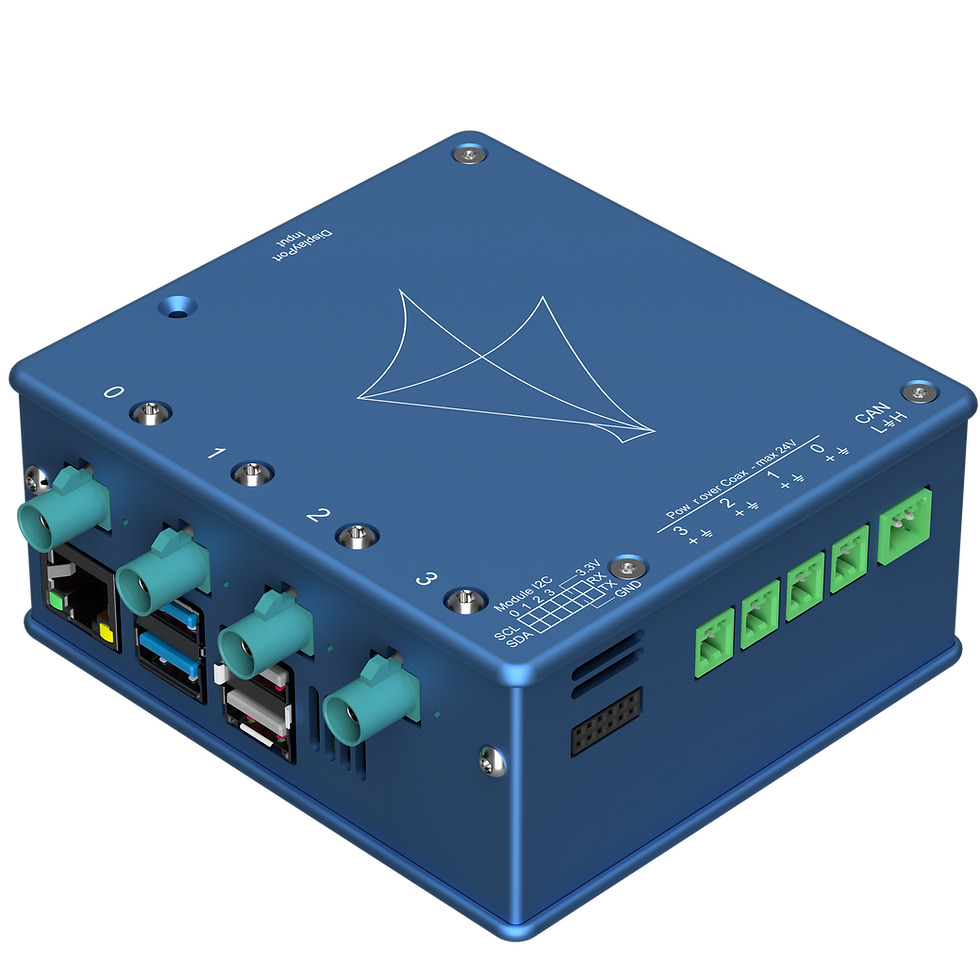

Automotive Video Extension
for the Raspberry Pi 5
.png)
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
Bringing aumotive video interface to the Pi - view or stream any media
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
02
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
03
Products Designed For You.
VID.EX
Bringing automotive video interfaces to the Pi - view or stream any media.
.png)
NET.EX
Enabling automotive networking with the PI - leverage the speed of open source.
